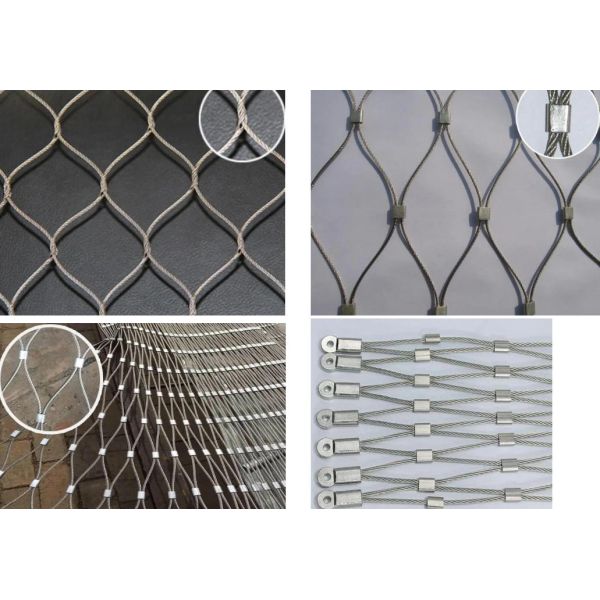

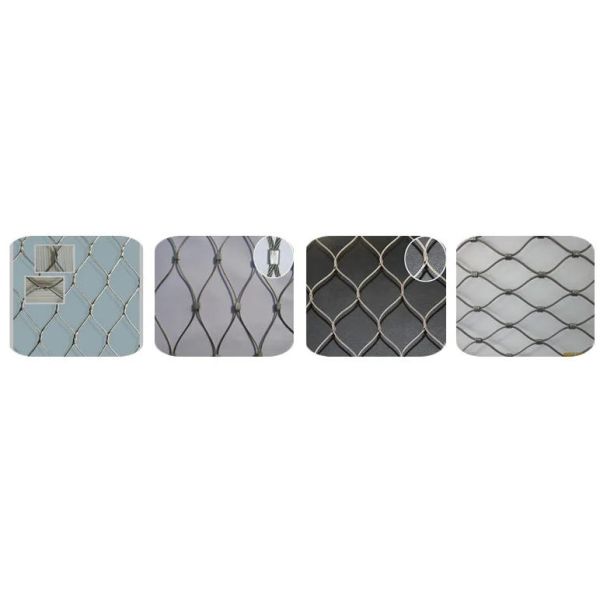

Iron Wire Cable Net Ferrule Flexible Stainless Steel Rope Mesh
The stainless steel rope mesh is made of stainless steel wire. The material of the wire is stainless steel: 201,304, 304L, 316, 316L, etc. Hot and cold galvanized steel wire rope can also be used as required.Two conventional types of stainless steel rope mesh
Stainless steel rope mesh is widely used in the lion mesh, lion enclosure fence mesh,lion enclosure,lion fence,lion enclosures,lion enclosure net,lion fence net,lion fence mesh,lion enclosure mesh,lion cage mesh,lion cage net,lion fence netting.
The flexible stainless steel cable net is widely used in geographical environments, aquaculture, wild animal fencing, engineer anti-explosion,throw screen,handrail screen,etc
The flexible stainless steel rope net is produced with high quality stainless steel wire cable and stainless steel ferrule(STAINLESS STEEL FERRULE ROPE MESH), the stainless steel grade includes type201, type304, type304L, type316, type316L.
The structures of the stainless steel wire cable have two kinds: 7 x 7 and 7 x 19.
The standard stainless steel wire cable diameter includes 1/8", 3/32", 1/12", 1/16", and 3/64",
The standard mesh opening size includes 2" x 2", 3" x 3" and 4" x 4".
| Stainless Steel Woven Cable Nets Sheet |
| Item No.s | Cable Diameter | Mesh Opening Size | Normal Break |
| | inch | mm | inch | mm | lbs. |
| M-3212W | 1/8 | 3.2 | 4.75 x 4.75 | 120 x 120 | 1,600 |
| M-3210W | 1/8 | 3.2 | 4 x 4 | 102 x 102 | 1,600 |
| M-3290W | 1/8 | 3.2 | 3.55 x 3.55 | 90 x 90 | 1,600 |
| M-3276W | 1/8 | 3.2 | 3 x 3 | 76 x 76 | 1,600 |
| M-3250W | 1/8 | 3.2 | 2 x 2 | 51 x 51 | 1,600 |
| M-2410W | 3/32 | 2.4 | 4 x 4 | 102 x 102 | 920 |
| M-2490W | 3/32 | 2.4 | 3.55 x 3.55 | 90 x 90 | 920 |
| M-2476W | 3/32 | 2.4 | 3 x 3 | 76 x 76 | 920 |
| M-2460W | 3/32 | 2.4 | 2.4 x 2.4 | 60 x 60 | 920 |
| M-2450W | 3/32 | 2.4 | 2 x 2 | 51 x 51 | 920 |
| M-2076W | 5/64 | 2 | 3 x 3 | 76 x 76 | 676 |
| M-2060W | 5/64 | 2 | 2.4 x 2.4 | 60 x 60 | 676 |
| M-2050W | 5/64 | 2 | 2 x 2 | 51 x 51 | 676 |
| M-2038W | 5/64 | 2 | 1-1/2 x 1-1/2 | 38 x 38 | 676 |
| M-1676W | 1/16 | 1.6 | 3 x 3 | 76 x 76 | 480 |
| M-1650W | 1/16 | 1.6 | 2 x 2 | 51 x 51 | 480 |
| M-1638W | 1/16 | 1.6 | 1-1/2 x 1-1/2 | 38 x 38 | 480 |
| M-1630W | 1/16 | 1.6 | 1.2 x 1.2 | 30 x 30 | 480 |
| M-1625W | 1/16 | 1.6 | 1 x 1 | 25.4 x 25.4 | 480 |
| M-1238W | 3/64 | 1.2 | 1-1/2 x 1-1/2 | 38 x 38 | 270 |
| M-1230W | 3/64 | 1.2 | 1.2 x 1.2 | 30 x 30 | 270 |
| M-1225W | 3/64 | 1.2 | 1 x 1 | 25.4 x 25.4 | 270 |
| M-1220W | 3/64 | 1.2 | 4/5 X 4/5 | 20 x 20 | 270 |
