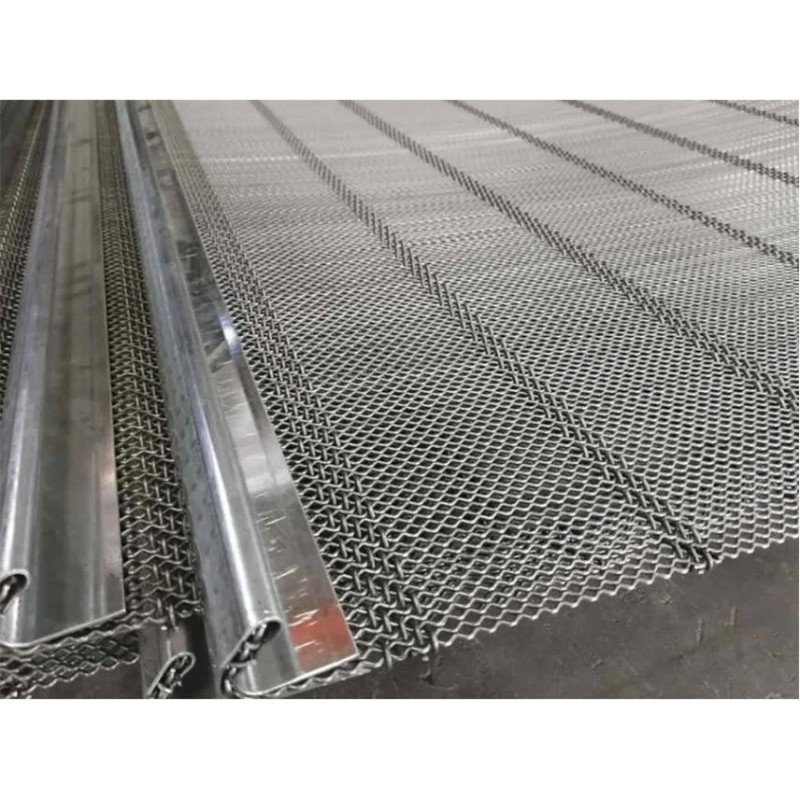

High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand

  • 1
  • 2

Brand Name : Xmesh

Model Number : vibrating screen mesh

Certification : SGS

Place of Origin : Hebei ,China

MOQ : 10 pcs

Payment Terms : TT/LC

Supply Ability : 1000 pcs per month

Delivery Time : 31-45 days

Packaging Details : Pallets

Material : STAINLESS STEEL WIRE

Type : Crimped Wire Mesh

Application : Woven Wire Mesh

Weave Style : Plain Weave

Technique : woven

Processing Service : Bending, Welding, Decoiling, Cutting, Punching

Surface Treatment : galvanized or painted.

Mesh Size : 1mm - 100mm.

Hole Type : square, rectangular and long slot.

Opening Size : 2.0 - 80.0 mm

Wire Diameter : 0.8 - 8 mm

width : 1.2m

length : 30m

hook : hook with steel sheet

hook degree : 60degree

Weaving type : Double Crimp

Email : devin@industrialmetalmesh.com

whatsapp : +8615369013183

Contact Now

High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand​

Product Description

Product Description

1.Material:
1) Stainless steel wire(201,202,302,304,304L,310,316,316L)
2) High carbon steel wire,low carbon steel,medium carbon steel,Mn steel wire.
3) Galvanized iron wire,galvanized steel wire,non-ferrous metal wire. Other materials are available on request.
2.Application:
Crimped wire mesh is used as fence or filters in a lot of industries;Heavy Duty Crimped wire mesh are also named Quarry Mesh,it is mostly used as screen in mining,coal factory,construction and other industries.
3.Supply form: in rolls and panels.1mX15m,1.5mX15m,2.0mX20m.etc.
4.Usage:
Used for screen in mine,coal factory,industry,architecture,filter a sand grain,filter the liquid and air,also can be used in the security in machiney fittings.
High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand

In its simplest form, the mining screen is a surface having many apertures, or openings, usually with uniform dimensions. Particles presented
to that surface will either pass through or be retained, according to whether the particles are smaller or larger than the governing dimensions
of the aperture. The efficiency of screening is determined by the degree of perfection of separation of the material into size fractions above
or below the aperture size.
There are numerous different types of mining screens available. Our products are fully customizable to fit most applications, including
capacity requirements. We adopt high-strength stainless steel to provide high abrasion, corrosion and clogging resistance in the harshest
conditions.

MATERIALS & PARAMETERS
Our main materials are carbon steel and stainless steel wires, and their parameters are listed as below.
Technical Parameters of Carbon Steel Wire
Grade Chemical Composition(%)
C Si Mn
45 0.42-0.50


0.52-0.60

0.50-0.80
50 0.47-0.55
55 0.52-0.60
60 0.57-0.65
65 0.62-0.70
70 0.67-0.75
65Mn 0.62-0.70 0.90-1.20
72A 0.15-0.75 0.15-0.75 0.30-0.60

Technical Parameters of Stainless Steel Wire
Grade Chemical Composition(%)
C Si Mn Cr
304 ≤0.08 8.0-10.5 ≤2.0 18.0-20.0
321 ≤0.08 9.0-12.0 ≤2.0 17.0-19.0
316 ≤0.08 10.0-14.0 ≤2.0 16.0-18.0
2205 ≤0.03 4.5-6.5 ≤2.0 21.0-23.0
2207 ≤0.03 6-8 ≤1.2 24.0-26.0

High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand

According to the different shapes we offer, our self-cleaning screen can be divided into three categories as shown below.High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand

ADVANTAGE OF MINING SCREEN

High mechanical strength, large carrying capability
High abrasion and chemical corrosion resistance
Excellent vibration and impact resistance
Large screening area
A long service life

High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand

High Quality Manganese Vibrating Screen Crimp Wire Mesh Mine Vibrating Sieving Sand
